Summary
When code starts to run into the dozens of lines, it can begin to look like a jumbled box of legos. The parts all go together, but you can easily forget the order and the ultimate goal of the project. Here’s a post to offer an organizational strategy for writing code in Rstudio.Table of Contents
Overview
When I first started writing code, I might get to line 40 and be really confused about what I was doing and how the code worked. Worse, when you went back to make changes, you had to relearn the code. The pros repeat it ad infinitum: comment your work. Here’s a way to take your commenting to the next level.
Background
Commenting is accomplished by starting a line with #. A series of lines can be commented by opening the “Code” tab and selecting “Comment/Uncomment Lines.” The hot-keys for the action are shift-control-C. From YaRrr! The Pirate’s Guide to R, the author states:
I cannot stress enough how important it is to comment your code! Trust me, even if you don’t plan on sharing your code with anyone else, keep in mind that your future self will be reading it in the future.
Beginning in Rstudio version 1.4, commenting can be heirarchal like any other Rmarkdown document where the number of # sets the level of the outline. Then, you can open RStudio’s document outline pane. The line must be followed by four consecutive dashes like this ----.
Additionally, an R package called bannerCommenter can also add some panache to your scripts.[1] The package was written by Bill Venables who with B.D. Ripley wrote one of the preeminent textbooks “Modern Applied Statistics with S”.
An Example
My workflow pipeline almost always follows the outline below:
#################################################################
## Author ##
## date ##
## url ##
## contact ##
#################################################################
# 1.0 Libraries ----
## 1.1 tidyverse ----
## 1.2 zoo ----
# 2.0 Get data ----
## 2.1 Source 1 ----
## 2.2 Source 2 ----
# 3.0 Combine the data ----
# 4.0 Create features ----
## 4.1 Column 1 ----
## 4.2 Column 2 ----
# 5.0 Make plots ----
## 5.1 Lineplot ----
### 5.1.1 Save ----
## 5.2 Scatterplot ----
### 5.2.1 ----
# 6.0 Save new dataset----Workspace

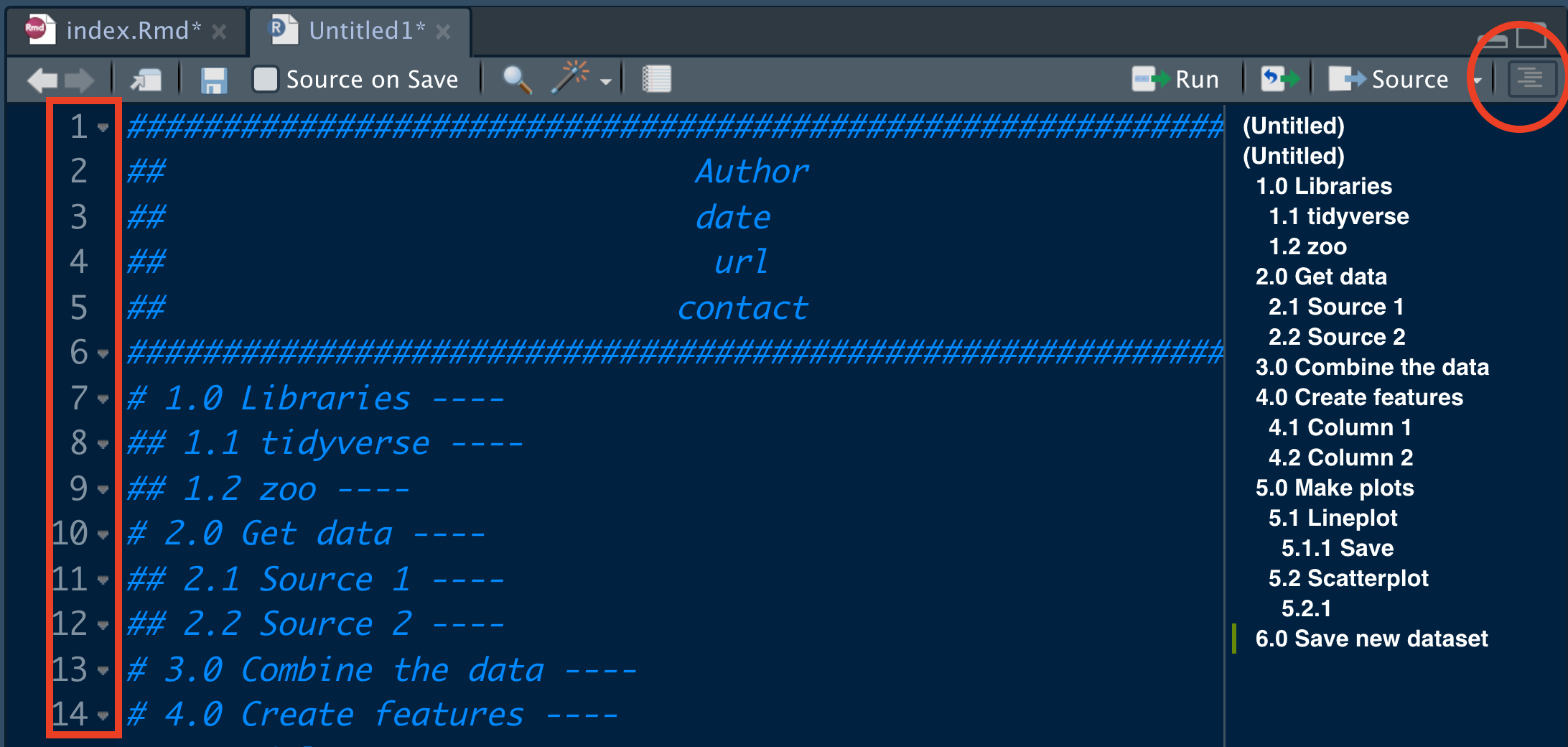

Figure 1: Notice the down arrows beside the line numbers and the button for the outline pane.
The code above was copied and pasted into RStudio’s editor pane and the outline button activated. The outline feature gives a clear map as to the progress of the program.
Conclusion
Commenting your code has three primary benefits. First, it makes it more readable and understandable. Second, Rstudio’s outline pane organizes the different parts and presents them in a heirarchal fashion. Third, the arrows can be used to collapse the code between comment lines. Lastly, bannerCommenter can be used in conjunction with outline to bring attention to key features. And if you fail to do it, you’re going to end up with a box of jumbled legos.
